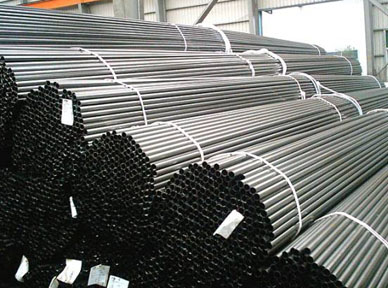

ASTM A334 Standard Specification for Seamless and Welded Carbon and Alloy-Steel Tubes for Low-Temperature Service

Standard: ASTM A334, ASME SA334
Equivalent Standard: NBR 5605

Material: SA334 Grade 6

Chemistry Composition

C, %	Mn, %	Si, %	P, %	S, %
0.30 max	0.29-1.06	0.10 min	0.025 max	0.025 max

Mechanical Properties

Tensile Strength , MPa	Yield Strength, MPa	Elongation, %	Hardness, HB
415 min	240 min	30 min	190 max

Outside Diameter & Tolerance

Hot rolled	Outside Diameter, mm	Tolerance, mm
	OD≤101.6	+0.4/-0.8
	101.6＜OD≤190.5	+0.4/-1.2
	190.5＜OD≤228.6	+0.4/-1.6
Cold Drawn	Outside Diameter , mm	Tolerance, mm
	OD＜25.4	±0.10
	25.4≤OD≤38.1	±0.15
	38.1＜OD＜50.8	±0.20
	50.8≤OD＜63.5	±0.25
	63.5≤OD＜76.2	±0.30
	76.2≤OD≤101.6	±0.38
	101.6＜OD≤190.5	+0.38/-0.64
	190.5＜OD≤228.6	+0.38/-1.14

Wall thickness & Tolerance

Hot rolled	Outside Diameter , mm	Tolerance, %
	OD≤101.6, WT≤2.4	+40/-0
	OD≤101.6, 2.4＜WT≤3.8	+35/-0
	OD≤101.6, 3.8＜WT≤4.6	+33/-0
	OD≤101.6, WT>4.6	+28/-0
	OD>101.6, 2.4＜WT≤3.8	+35/-0
	OD>101.6, 3.8＜WT≤4.6	+33/-0
	OD>101.6, WT>4.6	+28/-0
Cold Drawn	Outside Diameter , mm	Tolerance, %
	OD≤38.1	+20/-0
	OD>38.1	+22/-0

ASTM A334/A334M specification covers several grades of minimum wall-thickness, seamless and welded, carbon and alloy-steel tubes intended for use at low temperatures. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse affect on low-temperature impact properties.

Manufacture: the tubes shall be made by the seamless process and shall be either hot-finished or cold-finished, as specified.
Heat Treatment: all seamless tubes shall be treated to control their microstructure in accordance with one of the following methods:
a: Normalize by heating to a uniform temperature of not less than 1550 °F [845 °C] and cool in air or in the cooling chamber of an atmosphere controlled furnace.
b: Reheat and control hot working and the temperature of the hot-finishing operation to a finishing temperature range from 1550 to 1750 °F [845 to 955°C] and cool in a controlled atmosphere furnace from an initial temperature of not less than 1550 °F [845 °C].
Inspection & Test: chemistry composition analysis, tension test, flattening test, flaring test, hardness test, impact test, NDT, surface inspection and dimension check.

Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on.
Max length: 30000mm, also U bending can be offered.

Keyword: seamless steel pipe, seamless steel tube, low carbon steel tube, ASTM A334, ASME SA334
