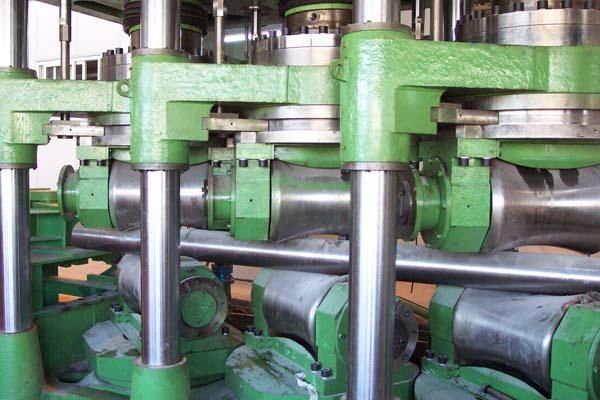

Horizontal Straightener

Horizontal Straightener

This straightener is a machine that rollers are horizontal cross, the die of rollers is elliptical curve, used to straighten camber of all kinds of pipes, to reduce the cross section ovality, and to improve the smoothness of the surface.

No.	Parameter	YGWJ60
1	Pipe OD (mm)	16-60
2	Pipe WT (mm)	1.2-5
3	Pipe max yield strength (N/mm)	≤420
4	No. of roller	19
5	Straightening speed (m/min)	≤30
6	Roller diameter (mm)	100
7	Roller length (mm)	110
8	Allowed bending degree before straightening (mm/m)	≤30
9	Straightening precision (mm/m)	≤0.5
10	Motor power (kw)	7.5
