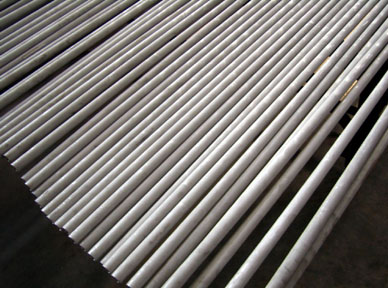

DIN 17456 General purpose seamless circular stainless steel tubes

Standard: DIN 17456
Equivalent Standards: DIN 17458, GOST 9941-81, GOST 9940-81, ASME SA213, ASTM A213, EN 10216-5

Material: X2CrNi19-11, 1.4306
Equivalent Material: TP304L, UNS S30403, 04Ch18N10

Chemistry Composition

C, %	Si, %	Mn, %	P, %	S, %	Cr, %	Ni, %	N, %
0.03 max	1.00 max	2.00 max	0.045 max	0.015 max	18.0-20.0	10.0-12.0	0.11 max

Mechanical Properties

Tensile Strength , MPa	Yield Strength, MPa	Elongation, %
460-680	180 min	40 min

Outside Diameter & Tolerance

Wall thickness & Tolerance

Length: 5800mm; 6000mm; 8000mm; 10000mm; 11800mm; and so on.
Max length: 18000mm, also U bending can be offered.

Keyword: stainless steel tube, stainless steel pipe, DIN 17456
