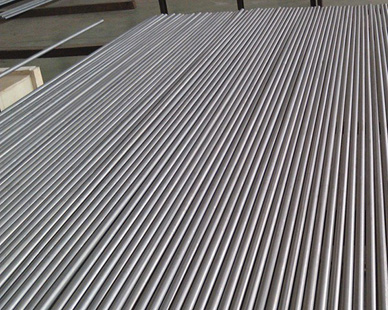

ASTM A249/ASME SA249 Standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes

Standard: ASTM A249, ASME SA249

Material: TP304, S30400
Equivalent Material: 08Ch18N10, X5CrNi18-10, 1.4301

Chemistry Composition

C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Ni, %
0.08 max	2.00 max	0.045 max	0.030 max	1.00 max	18.0-20.0	8.00-11.0

Mechanical Properties

Tensile Strength , MPa	Yield Strength, MPa	Elongation, %	Hardness, HRB
515 min	205 min	35 min	90 max

Outside Diameter & Tolerance

Outside Diameter, mm	Tolerance, mm
OD＜25	±0.10
25≤OD≤40	±0.15
40＜OD＜50	±0.20
50≤OD＜65	±0.25
65≤OD＜75	±0.30
75≤OD≤100	±0.38
100＜OD≤200	+0.38/-0.64
200＜OD≤225	+0.38/-1.14

Wall thickness & Tolerance

Outside Diameter, mm	Tolerance, %
OD＜25	±10
25≤OD≤40	±10
40＜OD＜50	±10
50≤OD＜65	±10
65≤OD＜75	±10
75≤OD≤100	±10
100＜OD≤200	±10
200＜OD≤225	±10

Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; 12000mm; and so on.
Max developed length: 32 meters, also U bending can be offered, each leg length can be 15.24 meters.
