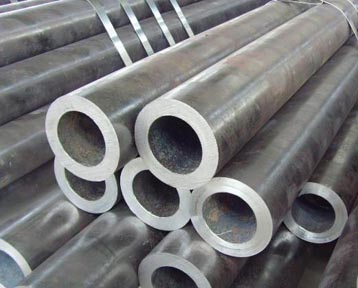

TU 14-3-190-2004 Seamless steel tubes for boilers and pipelines

Standard: TU 14-3-190-2004
Equivalent Standard: DIN 17175, EN 10216-2

Material: 10
Equivalent Materials: St35, St35.8, 1010, 360, E235

Chemistry Composition

C, %	Si, %	Mn, %	P, %	S, %	Cr, %	Ni, %
0.07-0.14	0.17-0.37	0.35-0.65	0.025 max	0.025 max	0.15 max	0.30 max

Mechanical Properties

Tensile Strength , MPa	Yield Strength, MPa	Elongation, %
353-549	216 min	24 min

Outside Diameter & Tolerance

Wall thickness & Tolerance

Length: 4000mm; 8030mm; 8050mm; 12010mm; 12030mm; 12050mm; and so on.
Max length: 25000mm, also U bending can be offered.

Keyword: boiler steel pipe, seamless steel pipe, seamless steel tube, TU 14-3-190-2004
