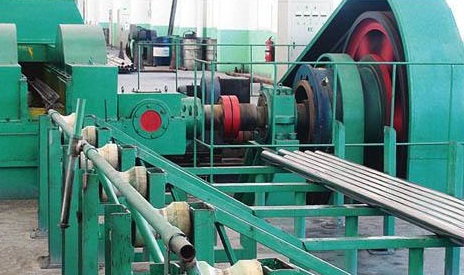

Photoelectrical Three-roll Cold Rolling Mill

LD photoelectrical three-roll cold rolling mill is used to roll all kinds of high precision small thickness pipes (include carbon steel, high alloy steel and non-ferrous metal). Its advantage is finished tube with small thickness, high surface finishes, high precision and good structure of material.

No.	Parameter		LD60
1	Billet	OD (mm)	32-95
2		WT (mm)	1-5
3		Length (m)	6.5
4	Finished tube	OD (mm)	30-90
5	Finished tube	WT (mm)	0.7-4
6	Framework speed (times/min)		40-100
7	Framework length (mm)		605
8	Feeding length (mm)		2-10
9	Billet rotate angle (°)		52°±2°
10	Roller diameter (mm)		131/143/165
11	Main motor type		Z4-225-31/75KW
12	Feeding motor type		Z4-132-3/18.5KW
13	Rotate motor type		Z4-132-1/11KW
14	Outline dimension (L x W x H)(m)		18 x 2.9 x 1.6
15	Total weight (t)		18
16	Feeding type		By manual
